Please Note!
Due to unprecedented demand for our premier Welding Decks and Skids, lead-times may not fit with your requirements. With current production resources, 2024 Q1 & Q2 are fully booked. We have three (3) build slots remaining in 2024 Q3 & Q4 to be allocated on a first come first serve basis.

Deck Specs

TYPICAL SPECIFICATIONS

  • Materials
    • Deck top, sides, tailboard & bumper are from 1/4” 5052-H32 sheet.
    • Cabinets are from 1/8” 5052-H32 sheet
    • Includes 1/4” steel work plate painted on bottom on plastic isolation sheet

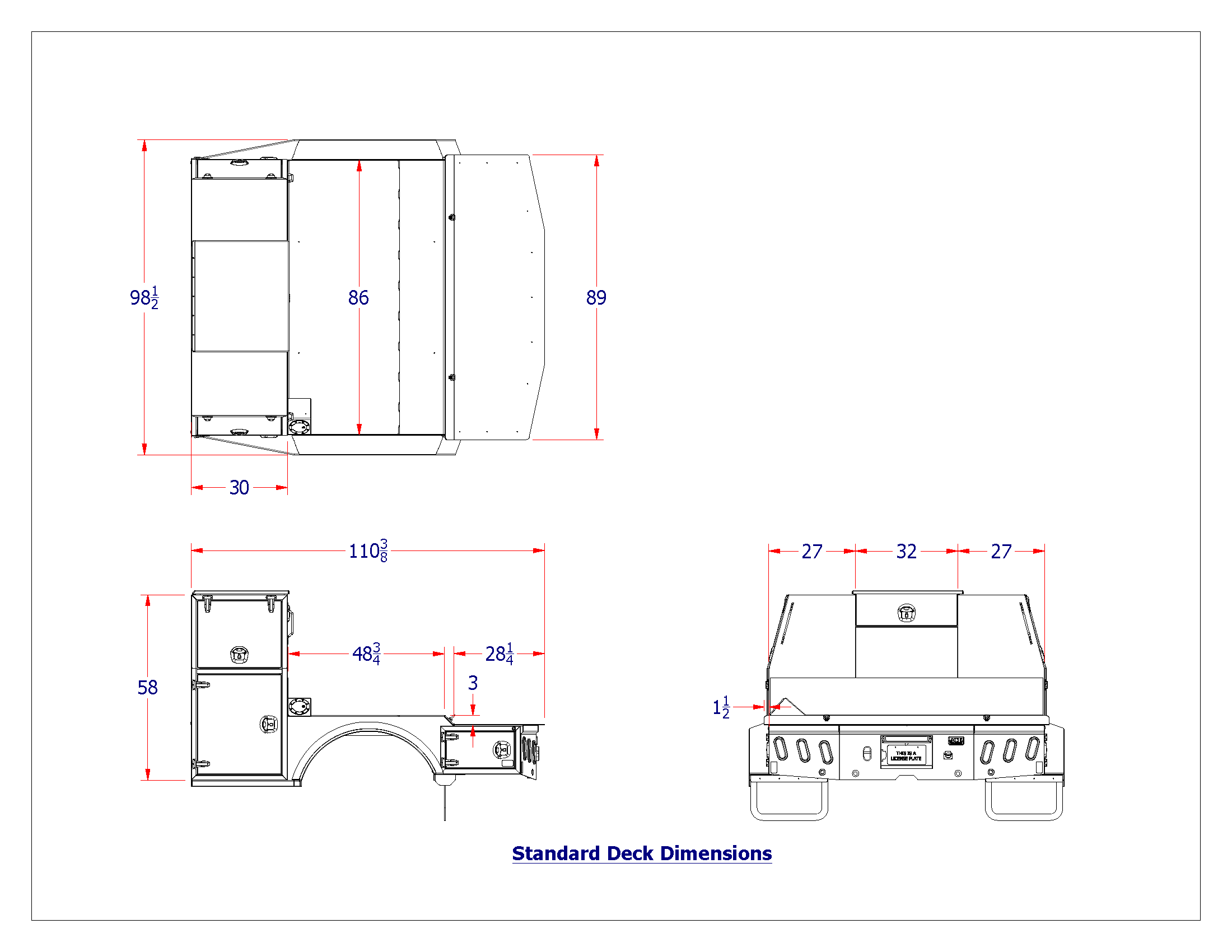

  • Dimensions

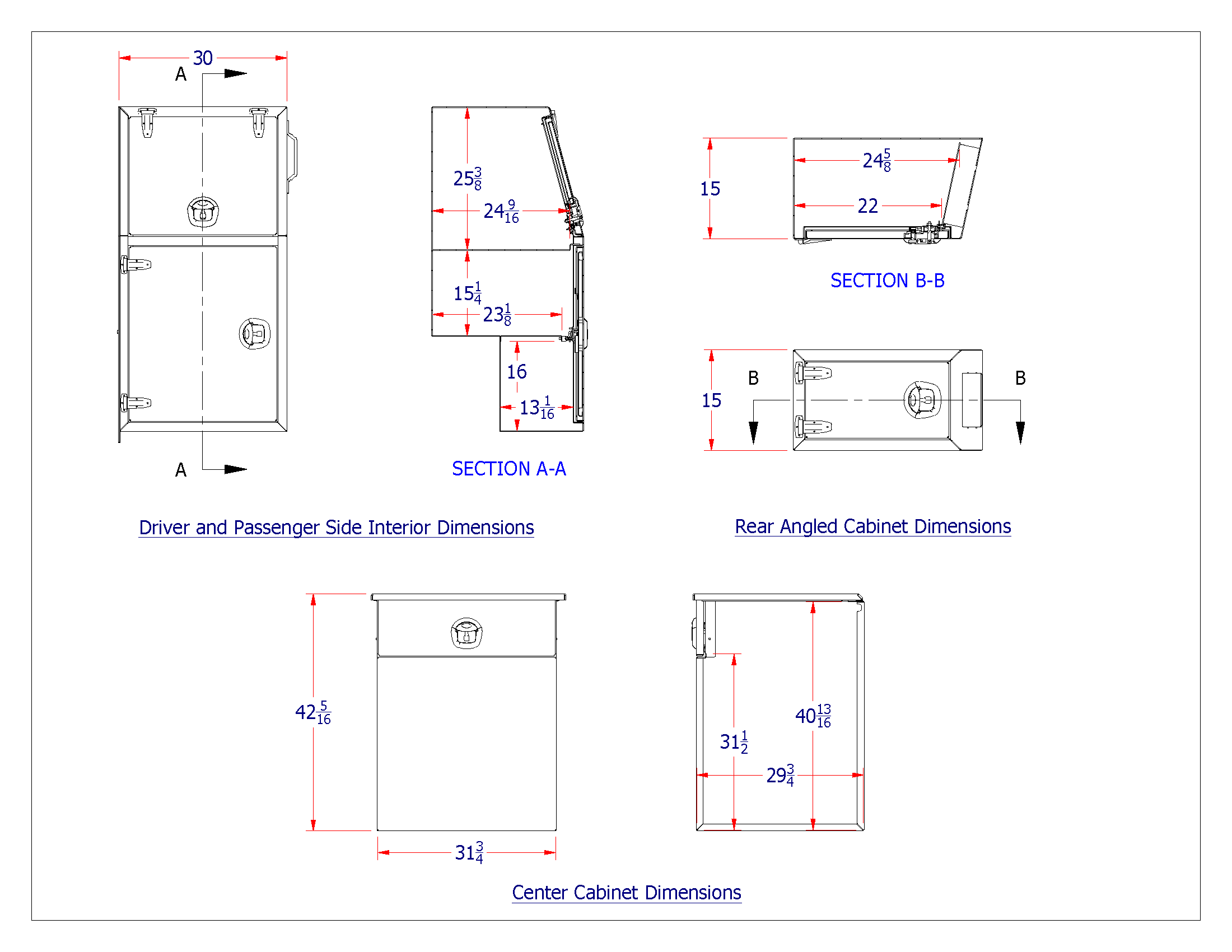

    • Cabinets are 30” wide x 58” high with straight lower section & sloped upper section.

  • Standard Features
    • Lower section door is side hinged with door check; upper section is top hinged and supported on a gas spring. Center compartment is accessed through a top opening door hinged at the front
    • Tailboard includes all required lights (round or oval lights available) and reflectors to CMVSS standards
    • Full vehicle lighting package to CMVSS standards with LED lamps. *Compartment lights available upon request.
    • Bolt-on fender flares with steps at front & rear

WELDING EQUIPMENT PLATFORM (WEP/Sloop)

  • Multi-hole mounting for a wide variety of industry standard welders. Just in case you look to upgrade your welder in the future.
  • Reel tree has an excess of mounting options for your welding cable to adjust to your specific needs.
  • Large lifting pockets provide easy removal and install of the WEP. Locating pins in the deck floor provide secure mounting.
  • Common accessories such as fire extinguishers, rod ovens, propane tanks can be added/removed.
  • Mounting of all sorts of compressed cylinders such as acetylene, oxygen, argon and ALTOP equipped bottles can be accomodated.
