In-frame Box
IF220912

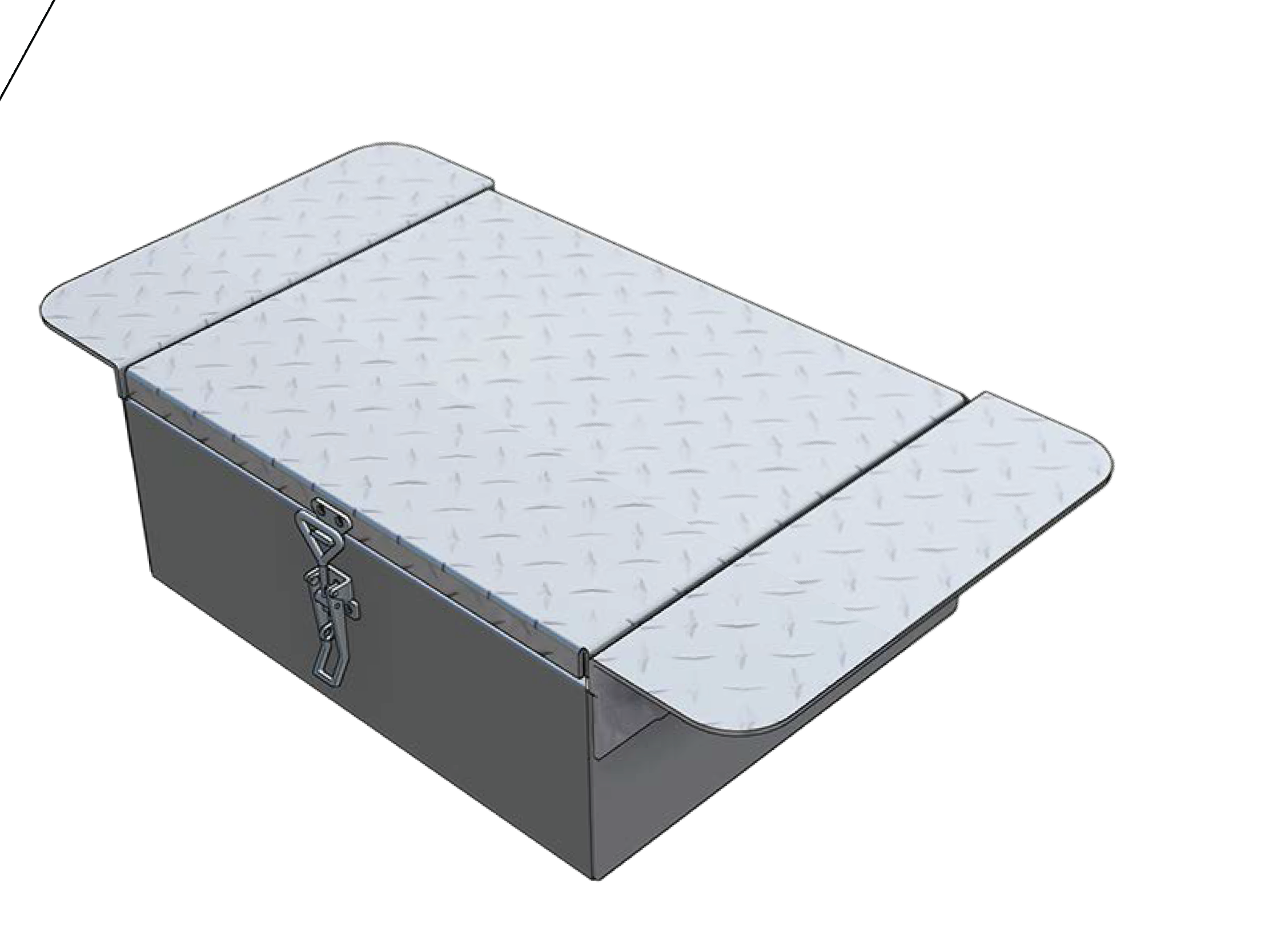

In-frame Box w Checker Plate lid, pad-lockable latch, flange mount & frame clips.
Mounting flange is checker plate and is level with lid.
May be custom-ordered with lower drive-shaft notch to increase depth.
No additional hardware required.
For use behind the cab, on or in the frame. Features include drip-resistant jamb, huck-bolted doors, stitch-welded internal seams, auto-grade bulb seal and ACE Nameplate
Ships with required hardware for frame mounting. Additional configurations and sizes for these applications are available on request. Contact factory for details.
| WxDxH (in) | Wt. (lbs) | Price | Quantity/Add to Quote |
|---|---|---|---|
| 33.5 x 12 x 9 | 39 | * |
* DISCLAIMER - ACE MANUFACTURING INC HAS A WIDE DEALER NETWORK ACROSS NORTH AMERICA. FOR PRICING AND AVAILABILITY, PLEASE CONTACT YOUR LOCAL DEALER
| Part No. | Description | WxDxH (in) | Wt. (lbs) |
Price | Quantity/Add to Quote |
|---|---|---|---|---|---|
| In-frame Storage Box | 33.5 x 12 x 9 | 39 | * | ||
| In-frame Storage Box | 33.5 x 24 x 9 | 39 | * | ||
| In-frame Storage Box | 33.5 x 24 x 12 | 39 | * |
