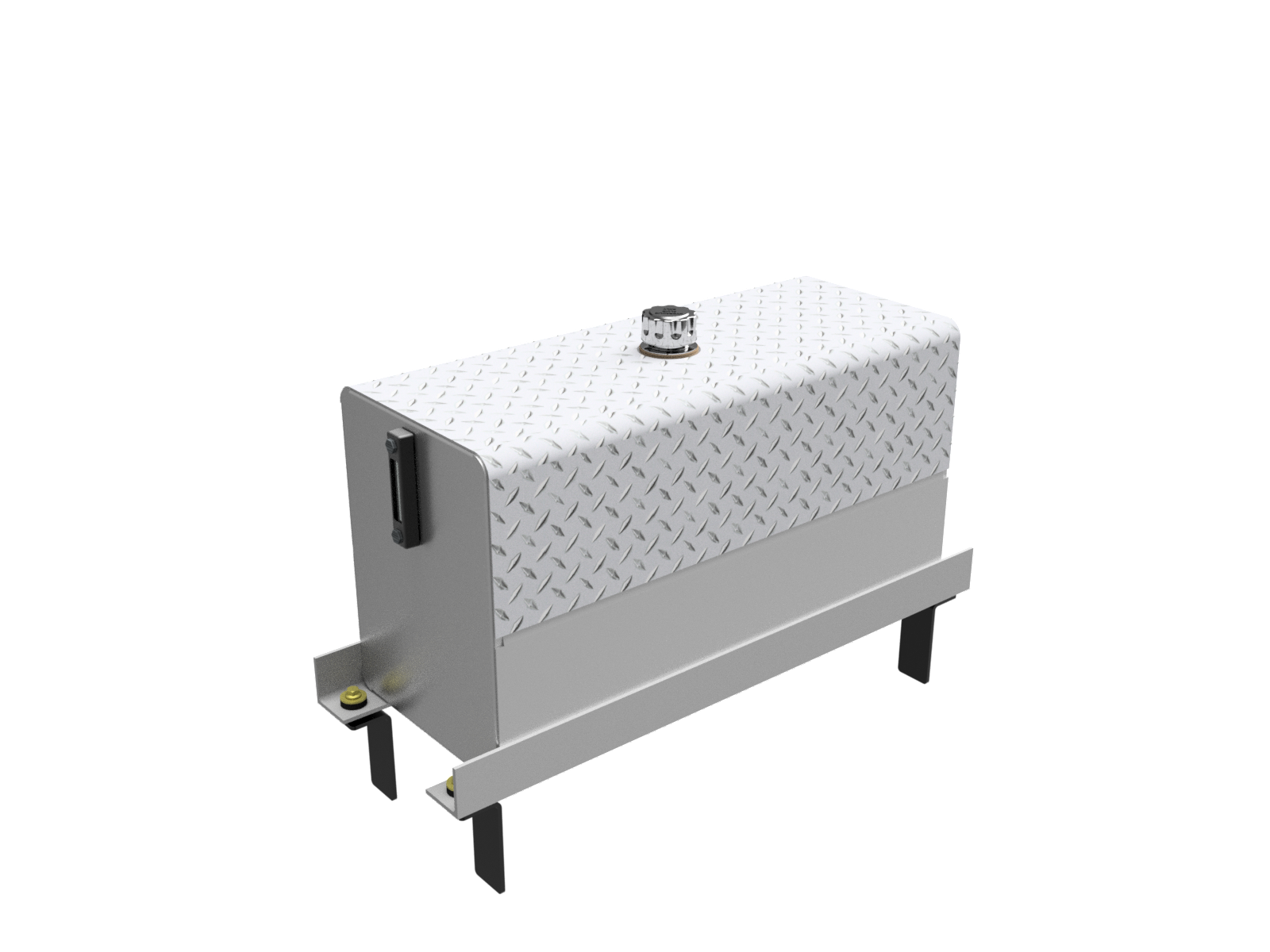

X-frame Upright Hydraulic Tanks
XFHT35
Cross-Frame Hydraulic Oil Reservoir, 35USG, Upright w/ mounting - checker w/ smooth
1/8" checker plate top w/ smooth ends

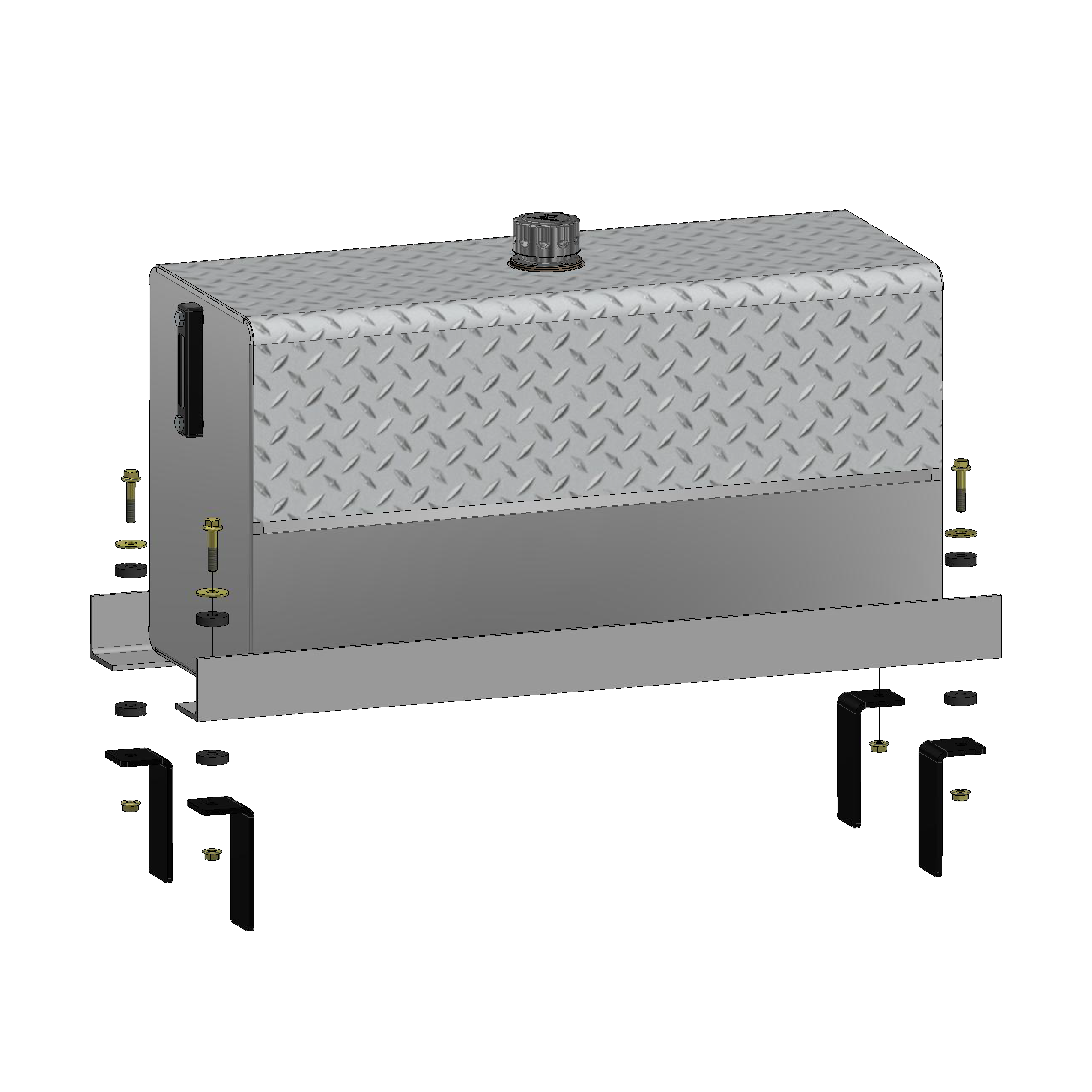

3"x3"x1/4" mounting rails welded to tank body
Tanks include suction & return fittings, vented fill cap, temp/sight gauge & mounting kit
Specifications
| WxDxH (in) | Wt. (lbs) | Price | Quantity/Add to Quote |
|---|---|---|---|
| 35 x 14 x 19 | 55 | * |
XFHT35
WxDxH (in)
35 x 14 x 19
Wt. (lbs)
55
Price
*
* DISCLAIMER - ACE MANUFACTURING INC HAS A WIDE DEALER NETWORK ACROSS NORTH AMERICA. FOR PRICING AND AVAILABILITY, PLEASE CONTACT YOUR LOCAL DEALER
| Part No. | Description | WxDxH (in) | Wt. (lbs) |
Price | Quantity/Add to Quote |
|---|---|---|---|---|---|
| Hydraulic Oil Tank, 35USG, Upright w/ mounting - checker w/ smooth | 35 x 14 x 19 | 55 | * | ||
| Hydraulic Oil Tank, 50USG, Upright w/ mounting - checker w/ smooth | 35 x 14 x 26 | 60 | * | ||
| Hydraulic Oil Tank, 70USG, Upright w/ mounting - checker w/ smooth | 48 x 18 x 26 | 100 | * |
Description
Hydraulic Oil Tank, 35USG, Upright w/ mounting - checker w/ smooth
WxDxH (in)
35 x 14 x 19
Wt. (lbs)
55
Price
*
Description
Hydraulic Oil Tank, 50USG, Upright w/ mounting - checker w/ smooth
WxDxH (in)
35 x 14 x 26
Wt. (lbs)
60
Price
*
Description
Hydraulic Oil Tank, 70USG, Upright w/ mounting - checker w/ smooth
WxDxH (in)
48 x 18 x 26
Wt. (lbs)
100
Price
*
