45° Rear Frame TCH
TCH3-RF45-L

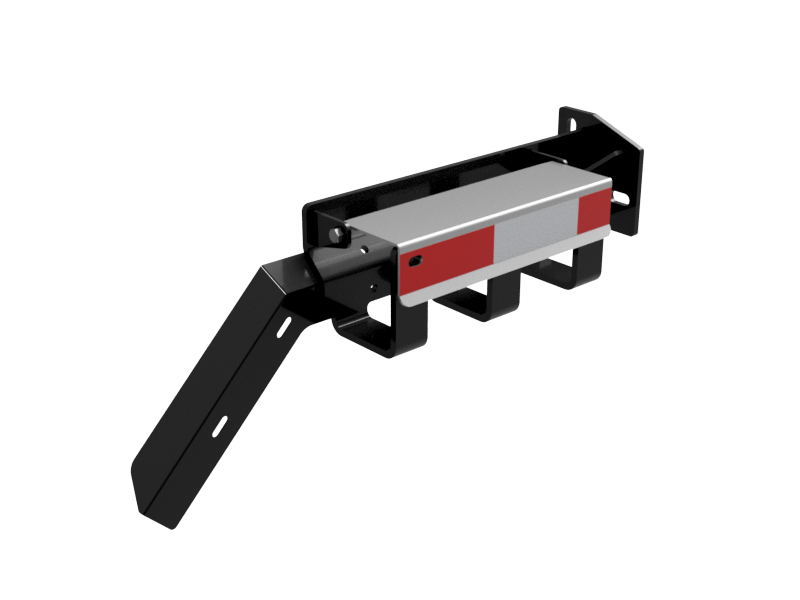

Tire Chain Hanger with 45° Mud Flap Bracket for Rear of Frame LEFT PC Black w/ SM lid
Designed to fit tapered rear frames and use existing mud flap-hanger mount holes on all common truck models.
Features shortened hook body with tapered mud flap mount & includes red and white reflective tape on lid and flap mounting extension.
Tested for fit on most Freightliner, PACCAR (PB & KW) , Volvo, and Western Star frames. Some drilling may be required.
Combo brackets are three-hook tire chain hangers with mounting capability for mud flaps or fenders that fit specific applications, models and suspension systems.
Options exist that fit Low-Air Leaf, Hendrickson, Airliner, Primaax, Newway systems and most PACAAR, Daimler, International, Mack and Volvo frames.

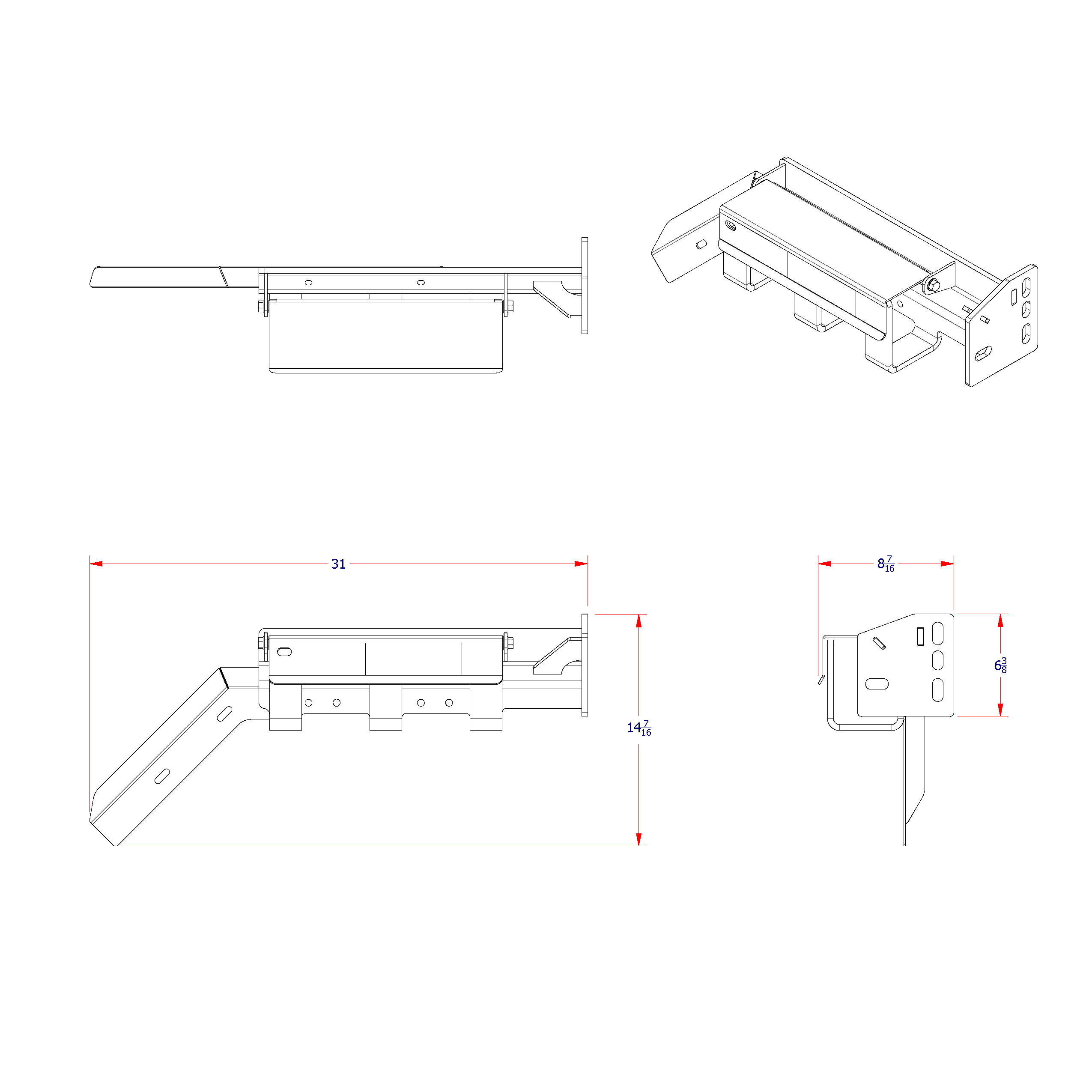

| WxDxH (in) | Wt. (lbs) | Price | Quantity/Add to Quote |
|---|---|---|---|
| 29 x 8 x 8 | 0 | * |
* DISCLAIMER - ACE MANUFACTURING INC HAS A WIDE DEALER NETWORK ACROSS NORTH AMERICA. FOR PRICING AND AVAILABILITY, PLEASE CONTACT YOUR LOCAL DEALER
| Part No. | Description | WxDxH (in) | Wt. (lbs) |
Price | Quantity/Add to Quote |
|---|---|---|---|---|---|
| TCH3 Rear Frame 45° Brkt Left | 29 x 8 x 8 | 0 | * | ||
| TCH3 Rear Frame 45° Brkt Right | 29 x 8 x 8 | 0 | * |
