BC-Spec Logging Racks
LR8102

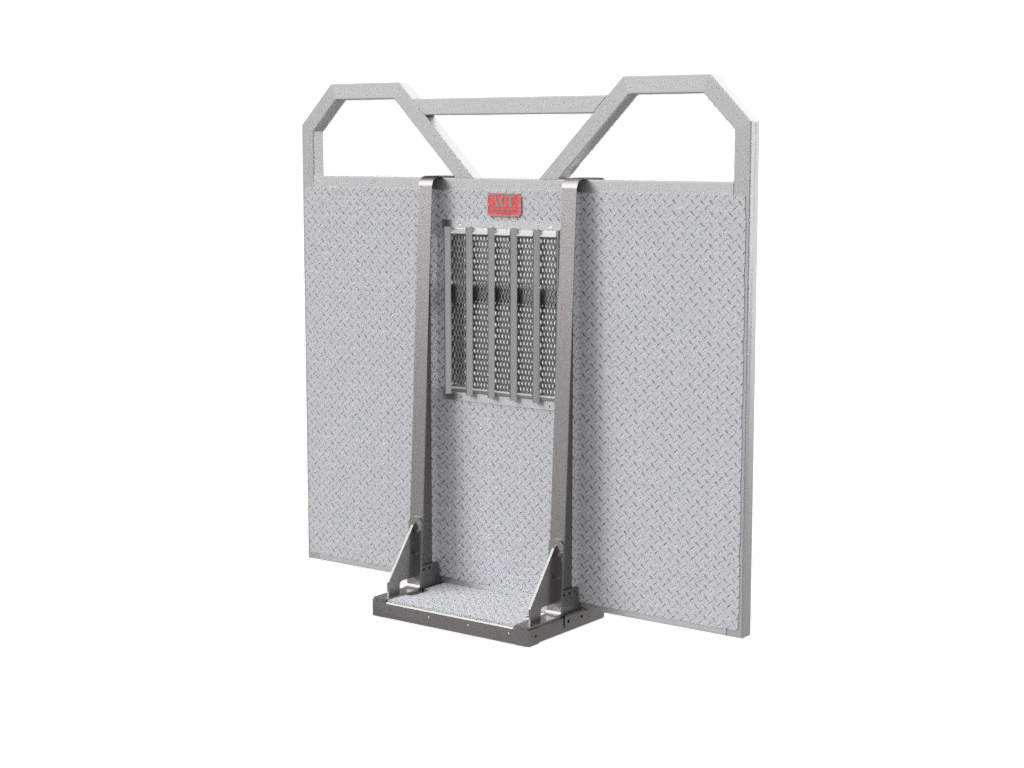

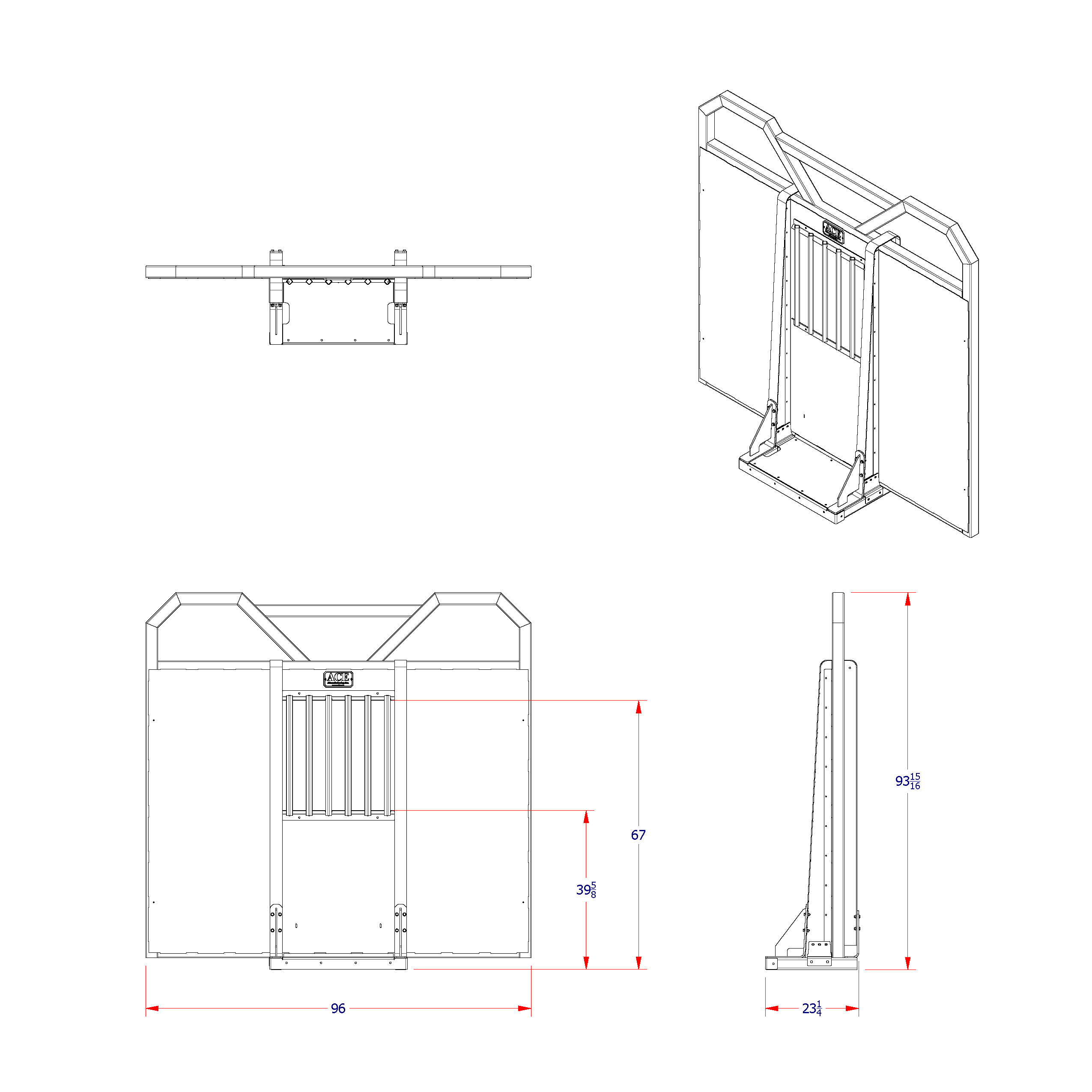

Worksafe BC Approved Logging Rack 96W94H STD Ears w/ Bar, Centre Deck, Jailbar Window w/ Mesh, & Mount Kit
Steel (Galvanized) Primary Strucural Web and Frame with Aluminum Cross-Braces and Ears combine for a 125,000lb load rating.
Low-Profile Racks feature a web depth of just 12" at 2 ft above frame for increased clearance. STD Ears have outer frame with tapered upper corner, connected by "Nerf Bar"
Lower centre panel and outer panels are checker plate aluminum. Upper half of centre panel is mesh with jailbar overlay.
Our LR7 and LR6 Series Aluminum Logging Racks are built around an HD webbing + tube design w/ steel reinforced U-bolt mounting areas. Multiple options for windows, decks, upper ears and accessories.
An LR01 Mount Kit consisting of 4 U-Bolts w/ tie bars, hardware & isolation strips is included with each logging rack.
| WxDxH (in) | Wt. (lbs) | Price | Quantity/Add to Quote |
|---|---|---|---|
| 96 x 24 x 94 | 475 | * |
* DISCLAIMER - ACE MANUFACTURING INC HAS A WIDE DEALER NETWORK ACROSS NORTH AMERICA. FOR PRICING AND AVAILABILITY, PLEASE CONTACT YOUR LOCAL DEALER
| Part No. | Description | WxDxH (in) | Wt. (lbs) |
Price | Quantity/Add to Quote |
|---|---|---|---|---|---|
| Steel-Web Logging Rack 96W94H STD Ears w/ Bar, Centre Deck, Jailbar Window w/ Mesh, and Mount Kit | 96 x 24 x 94 | 475 | * | ||
| Steel Web Logging Rack 96W94H STD Ears w/ Bar, Centre Deck, Jailbar Window w/ Mesh, and Mount Kit | 96 x 24 x 94 | 475 | * | ||
| Steel Web Logging Rack 96W94H STD Ears w/ Bar, Centre Deck, Jailbar Window w/ Mesh, and Mount Kit | 96 x 24 x 94 | 475 | * |
