Trailer - Dunnage Trays

Open dunnage storage option from lightweight aluminum with self-draining design.

Adjustable to fit most platform trailers both flat & drop deck
Dunnage Tray Kits w/ Mount Kit
Part No. Description WxDxH (in) Wt. (lbs)
DT1002210-82 Dunnage Tray Kit 100W22D10H w/ T82 mount kit 99.438 x 23.563 x 21.25 85
DT1202210-82 Dunnage Tray Kit 120W22D10H w/ T82 mount kit 119.438 x 23.563 x 21.25 95

Trailer - Accessories
Load Leveller Parts
Part No. Description WxDxH (in) Wt. (lbs)
B200-01 Replacement Pinning Stake, Sliding / Floating style for Load Bunk, aluminum 3.5 x 2 x 11.1875 2
B200-02 Replacement Pinning Stake, Solid / Fixed style for Load Bunk, bolt-on w/ shim, aluminum 5.25 x 1.5 x 9.75 2
B200-10 Replacement Chain Hook for Load Bunk, steel, galvanized - includes backing plate 4 x 2 x 4 1.63
B200-20 Replacement Stake Pocket for Load Bunk, bolt-on, aluminum 5.75 x 2.25 x 4 1
Dolly Pad Holders
Part No. Description WxDxH (in) Wt. (lbs)
DPH161803 Dolly Pad Holder, 16"W x 18"D x 3"H - holds two plastic 15"x17"x1" dolly pads, 3/16" aluminum 16 x 18 x 3 8
DPH232405.5 Dolly Pad Holder, 23"W x 24"D x 5.5"H - holds wood style dolly pads, 3/16" aluminum 23 x 24 x 5.5 18

Trailer - Dunnage Boxes

Dunnage boxes come standard with Locking T-Handle latches and feature drip-resistant jamb, huck-bolted doors, stitch-welded internal seams, auto-grade bulb seal and ACE Nameplate

Options include: Choice of finish, Whale Tail Latches, Alternative Hinge Location (Standard orientation is mirrored hinge placement)
Dunnage Boxes
Part No. Description WxDxH (in) Wt. (lbs)
DB1810024 Dunnage Box 18Wx100Dx18H, full doors both ends, T-handles - smooth finish 18 x 100 x 24 125
DB1810020 Dunnage Box 18Wx100Dx18H, full doors both ends, T-handles - smooth finish 18 x 100 x 20 111
DB186418 Dunnage Box 18Wx64Dx18H, full doors both ends, T-handles - smooth finish 18 x 64 x 18 73
DB2410020SL Dunnage Box 24Wx100Dx20H, full doors both ends, slide latches - smooth finish 24 x 100 x 20 129
DB2410020SL-CPD Dunnage Box 24Wx100Dx20H, full doors both ends, slide latches - smooth body checker doors 24 x 100 x 20 130
DB249636WT-CP Dunnage Box 24Wx96Dx36H, full doors both ends, Whale Tail latches- checker finish 24 x 96 x 36 192
DB29.59919.5OCL Dunnage Box 24Wx100Dx20H, full doors both ends, slide latches - smooth finish 29.5 x 99 x 19.5 0

Trailer - Load Levelers

Lightweight Aluminum Load Levellers (aka Load Bunks) are made to order. Aluminum construction resists corrosion, while replaceable pressure-treated wood extends the service life.

Galvanized bolt on steel tie down hooks ensure load bunk stability. Available with solid or floating pinning stakes.
16-19" Tall Load Levellers
Part No. Description WxDxH (in) Wt. (lbs)
B216-30-02 Load Leveller, 16"Hx97.5"W, fixed pinning stakes w/ shims 97.5 x 6 x 16 85
B218-30-01 Load Leveller, 18"Hx97.5"W, sliding pinning stakes 97.5 x 6 x 18 85
B218.25-30-01 Load Leveller, 18.25"Hx97.5"W, sliding pinning stakes 97.5 x 6 x 18.25 85
B219-28-02 Load Leveller, 19"Hx97.25"W, fixed pinning stakes w/ shims 97.25 x 6 x 19 85
B219-29-01 Load Leveller, 19"Hx97.5"W, sliding pinning stakes 97.375 x 6 x 19 85
B219-30-01 Load Leveller, 19"Hx97.5"W, sliding pinning stakes 97.5 x 6 x 19 85
20" Tall Load Levellers
Part No. Description WxDxH (in) Wt. (lbs)
B220-26-01 Load Leveller, 20"Hx97"W, sliding pinning stakes 97 x 6 x 20 85
B220-28-02 Load Leveller, 21"Hx97.25"W, fixed pinning stakes w/ shims 97.25 x 6 x 20 85
B220-30-01 Load Leveller, 20"Hx97.5"W, sliding pinning stakes 97.5 x 6 x 20 85
QL-B220-28-02 Load Leveller, 21"Hx97.25"W, fixed pinning stakes w/ shims 97.25 x 6 x 20 85
21-23" Tall Load Levellers
Part No. Description WxDxH (in) Wt. (lbs)
B221-28-02 Load Leveller, 21"Hx97.25"W, fixed pinning stakes w/ shims 97.25 x 6 x 21 85
B221-26-02 Load Leveller, 21" Hx97" W, fixed pinning stakes w/ shims 97 x 6 x 21 85
B221-29-01 Load Leveller, 21"Hx97.375"W, sliding pinning stakes 97.375 x 6 x 21 85
B222-29-01 Load Leveller, 22.5"Hx96.75"W, sliding pinning stakes 97.375 x 6 x 22 85
24 -28" Tall Load Levellers
Part No. Description WxDxH (in) Wt. (lbs)
B224-31-01 Load Leveller, 24"Hx97.625"W, sliding pinning stakes 97.625 x 6 x 24 85
B226-26-02 Load Leveller, 26"Hx97"W, fixed pinning stakes w/ shims 97 x 6 x 26 85

Trailer - Storage Boxes

Trailer boxes have cam-lock latches, strap hinges & feature drip-resistant jamb, huck-bolted doors, stitch-welded internal seams, auto-grade bulb seal and ACE Nameplate

Options include: Choice of smooth or checker plate finish, latch and door material upgrades. Custom sizes are available. Contact Factory for details.
Single Door Trailer Box
Part No. Description WxDxH (in) Wt. (lbs)
TB242424LH Box 24Wx24Dx24H, flush door box, aluminum cam lock - smooth 24 x 24 x 24 52
TB242424RH Box 24Wx24Dx24H, flush door box, aluminum cam lock - smooth 24 x 24 x 24 52
3' Trailer Boxes
Part No. Description WxDxH (in) Wt. (lbs)
TB362424 Box 36Wx24Dx24H, double flush door box, aluminum cam lock - smooth 36 x 24 x 24 71
TB361818 Box 36Wx18Dx18H, double flush door box, aluminum cam lock - smooth 36 x 18 x 18 65

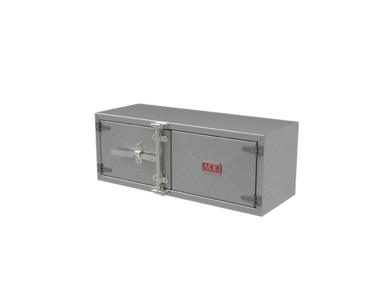

4' Trailer Boxes
Part No. Description WxDxH (in) Wt. (lbs)
TB482424 Box 48Wx24Dx24H, double flush door box, aluminum cam lock - smooth 48 x 24 x 24 87
TB481818 Box 48Wx18Dx18H, double flush door box, aluminum cam lock - smooth 48 x 18 x 18 65
TB482424CP Box 48Wx24Dx24H, double flush door box, aluminum cam lock - checker 48 x 24 x 24 87
TB482430 Box 48Wx24Dx30H, double flush door box, aluminum cam lock - smooth 48 x 24 x 30 98
TB552420 Box 55Wx24Dx20H, double flush door box, aluminum cam lock - smooth 55 x 24 x 20 85
5' Trailer Boxes
Part No. Description WxDxH (in) Wt. (lbs)
TB602424 Box 60Wx24Dx24H, double flush door box, aluminum cam lock - smooth 60 x 24 x 24 103
TB482418 Box 60Wx18Dx18H, double flush door box, aluminum cam lock - smooth 60 x 18 x 18 80
TB601818 Box 60Wx18Dx18H, double flush door box, aluminum cam lock - smooth 60 x 18 x 18 80
TB601818SSCL Box 60Wx18Dx18H, double flush door box, aluminum cam lock - smooth 60 x 18 x 18 80
TB602418 Box 60Wx18Dx18H, double flush door box, aluminum cam lock - smooth 60 x 18 x 18 80
TB602424CP Box 60Wx24Dx24H, double flush door box, aluminum cam lock - checker 60 x 24 x 24 103
